eMotimo
€ 3.890,00 exkl. MwSt. zzgl. Versandkosten

eMotimo Spectrum ST4- V-Mount Run And Gun Bundle (ST417_RG_GM_DD14)

Lieferzeit:
5-7 Werktage / 5-7 working days
Artikelnummer::
ST417_RG_GM_DD14

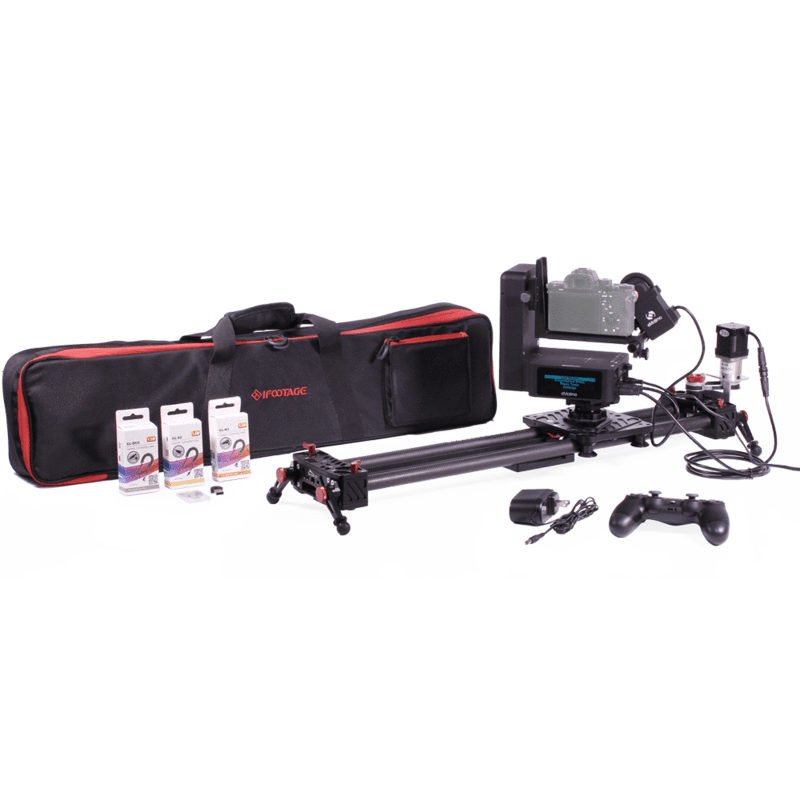

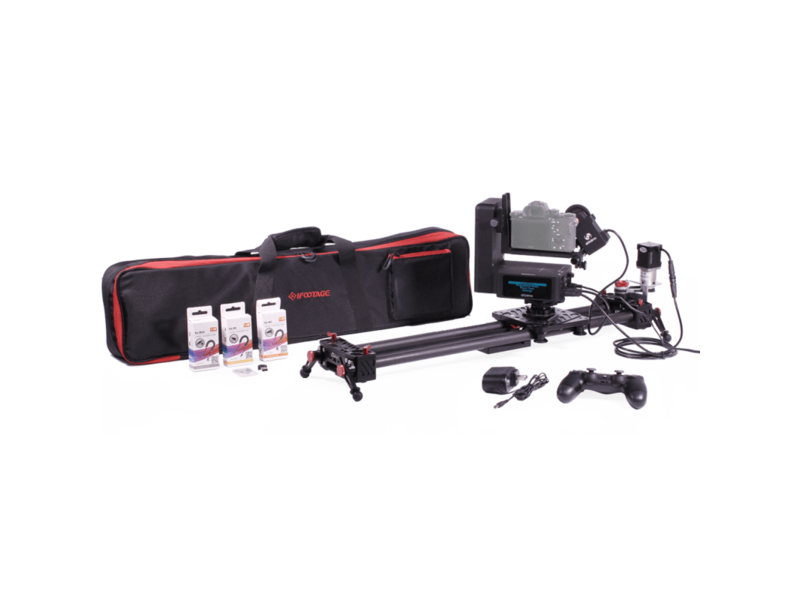

Spectrum ST4- Run + Gun Bundle

Our smallest and lightest 4-axis bundle. Easy to pack and carry. Grab and go shoot.

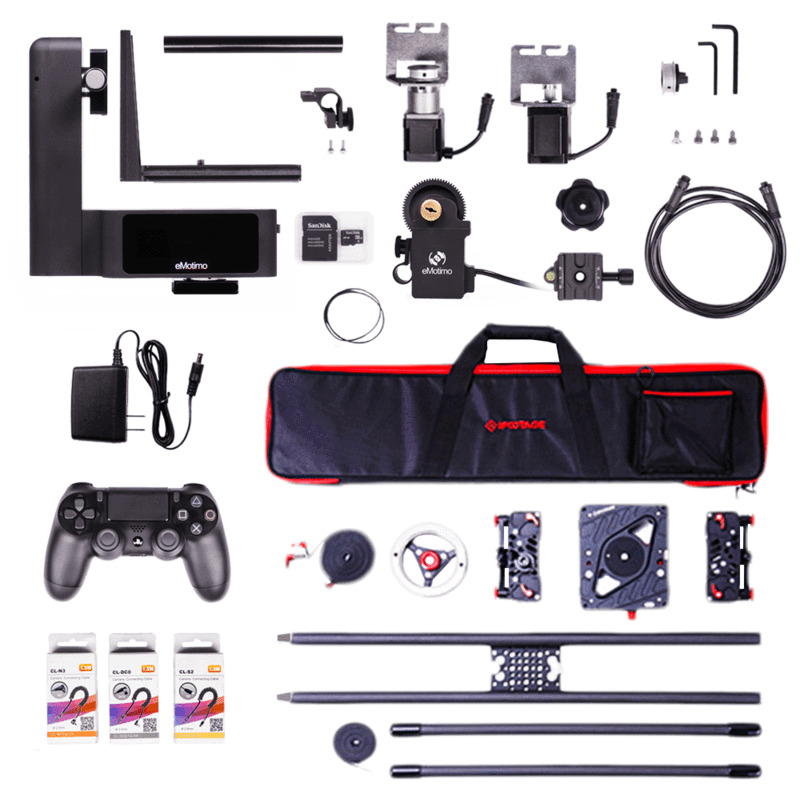

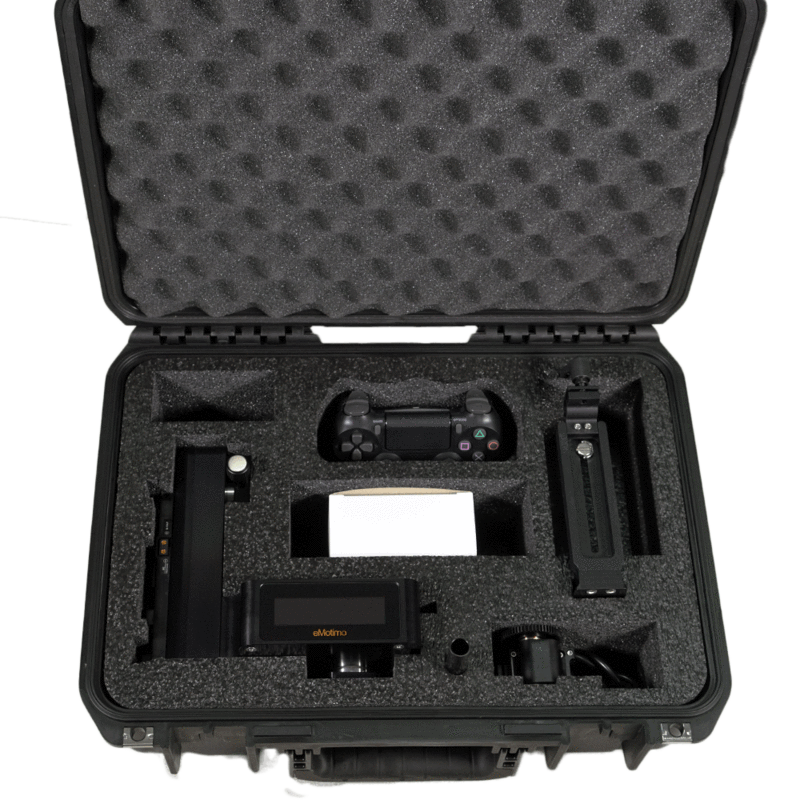

WHAT'S In The Box:

1) spectrum ST4 4-axis motion control unit

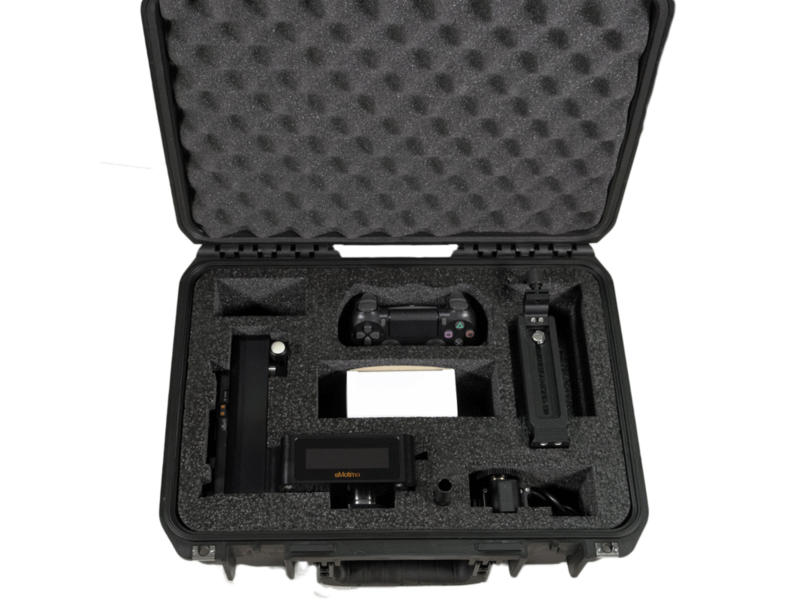

2) spectrum medium hard case

3) eMotimo Heavy Duty L-bracket (camera / Fz motor mounting)

4) eMotimo Fz (focus) Motor

5) iFootage Shark Slider with 30 inch base and 2 foot extension (configure to 2 and 4 foot lengths)

6) iFootage integration kit with motor(s) of your choosing

7) uSD Card/Instructions

8) Arca compatible plate for pan axis

9) PS4 DUALSHOCK®4 wireless controller

10) 12V AC power supply

11) CL-N3, CL-DC0, CL-S2 DSLR camera trigger cables

Hardware map

#1 Spectrum ST4: Spectrum ST4 controls and powers all 4-axis of motion at the same time.

#2 PS4 controller: The PS4 controller is included in every spectrum purchase. This control is great for wirelessly controlling 4 axis of motion precisely, intuitively, and simultaneously.

#3 Arca compatible L-bracketsTo mount your camera to spectrums arca compatible tilt clamp, you will need to first mount your camera to an arca compatible L-bracket.

#4 Arca compatible clamps (ballheads, or monopod heads): Spectrums base comes with an arca plate mounted to the pan axis. You will need to lock it down by using an arca compatible clamp on your tripod or slider. For greater adjustability, mount spectrum to a ballhead or monopod head. These are great if you’ve moving up a slope on your slider and need to level spectrum, if you want to raise your spectrum up to avoid any interference, or for leveling on a tripod.

#5 Focus Fz & Integrated L-BracketMount focus Fz to a 15mm rod. If you pick up our Fz + heavy duty L-bracket+ rail + clamp this is included and mounts to the end of the L-Bracket.

#6 spectrum ST4 / Dana Dolly Bundle

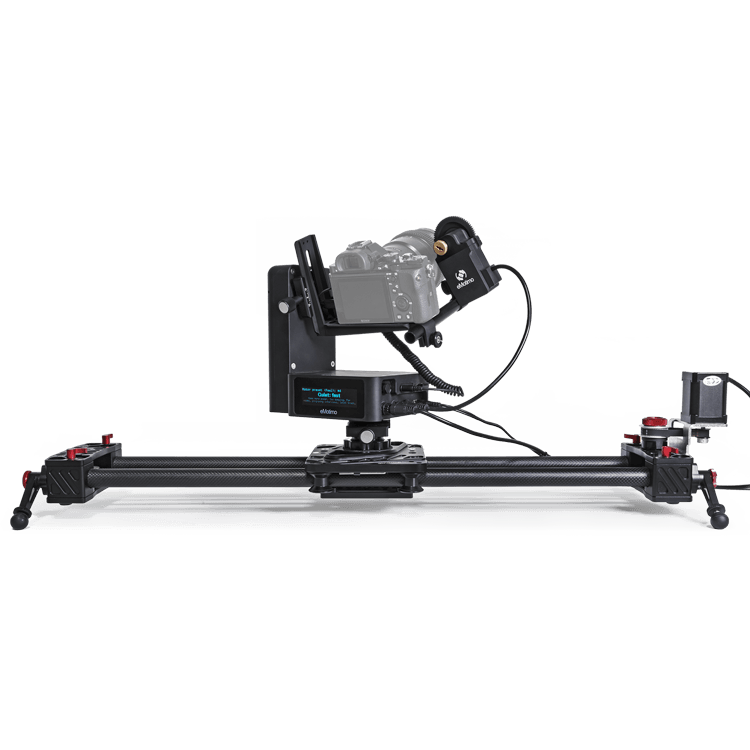

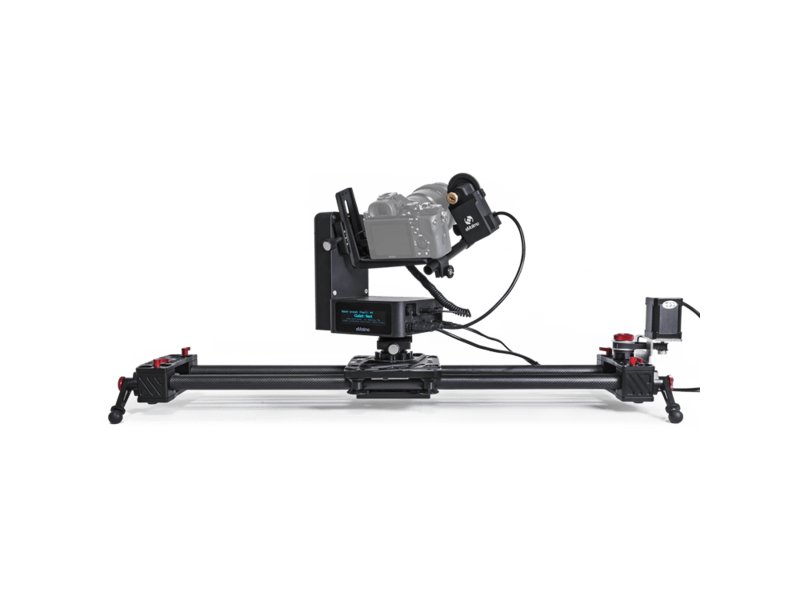

#7 spectrum ST4 / Shark Run & Gun Bundle: Mount your spectrum directly the the carriage on your shark slider and have spectrum control your linear motion.

#8 Tripod: Mount spectrum for panning and tilting to a tripod using an arca compatible clamp.

#9 eMotimo cartMount spectrum to the eMotimo cart by using a monopod head or ballhead.

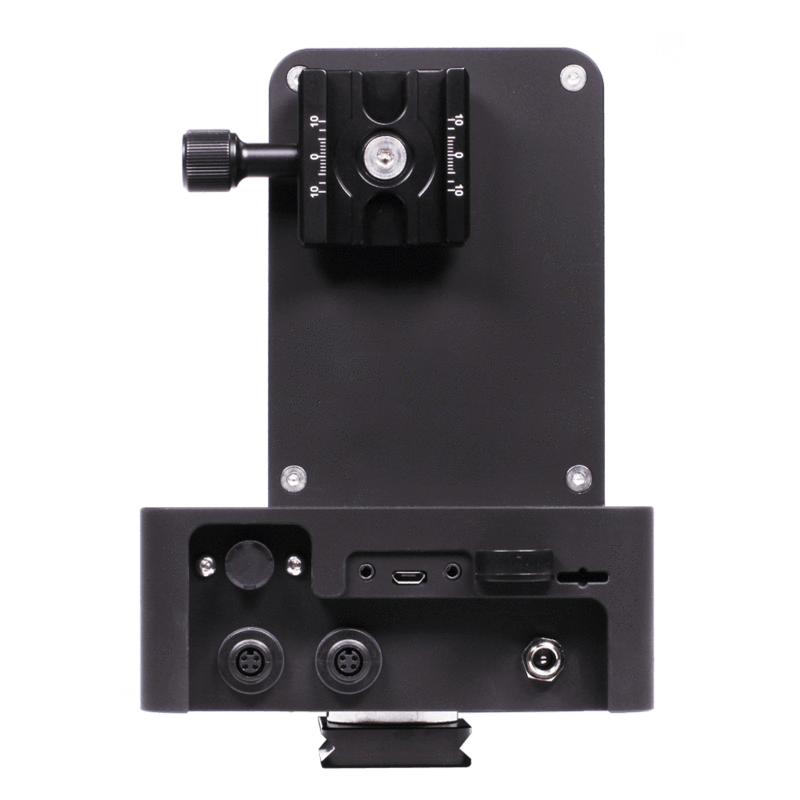

Electronics map

#1 spectrum ST4

#2 Camera shutter cable: Included with a spectrum purchase and sold separately. The camera shutter cable connects from spectrums camera port to your cameras shutter port. Spectrums built-in intervalometer will send a signal to trigger your camera to fire for SMS (shoot-move-shoot) timelapse shots using this cable.

#3 PS4 controller: Your PS4 controller connects to spectrum using the bluetooth dongle. Make sure this dongle is fully inserted before connecting your remote. Extra dongles can be found here.

#4 SD card - Firmware: An SD card is included in every spectrum ST4 purchase.

#5 Power - 12-24V: Using the included AC adapter or an external battery, power your spectrum ST4 using the following specs: 12-24V. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector – center positive.

#6 Focus Fz (M3 or M4 port): Focus Fz’s primary motor port is M4. However, you can use two Fz units with spectrum and in this configuration you can use the M3 motor port for your second Fz unit.

#7 Slider: Your slider’s primary motor port is M3.

#8 Cart: Your cart’s primary motor port is M3.

#9 Turntable: Your turntable’s primary motor port is M3.

#10 External trigger: The spectrum’s i/o port is used for like external triggering or serial communication to external devices.

#11 future: USB port – future functionality – Powering the spectrum for motor moves from any USB port is not supported.
