eMotimo
€ 125,00 exkl. MwSt. zzgl. Versandkosten

For the DIY'r, these stepper motors allow you to drive a dolly or custom motion control accessory via the M3/M4 ports on the side of your Spectrum.

Lieferzeit:
5-7 Werktage / 5-7 working days
Artikelnummer::
MAC_GSM_14

For the DIY'r, these stepper motors allow you to drive a dolly or custom motion control accessory via the M3/M4 ports on the side of your Spectrum.

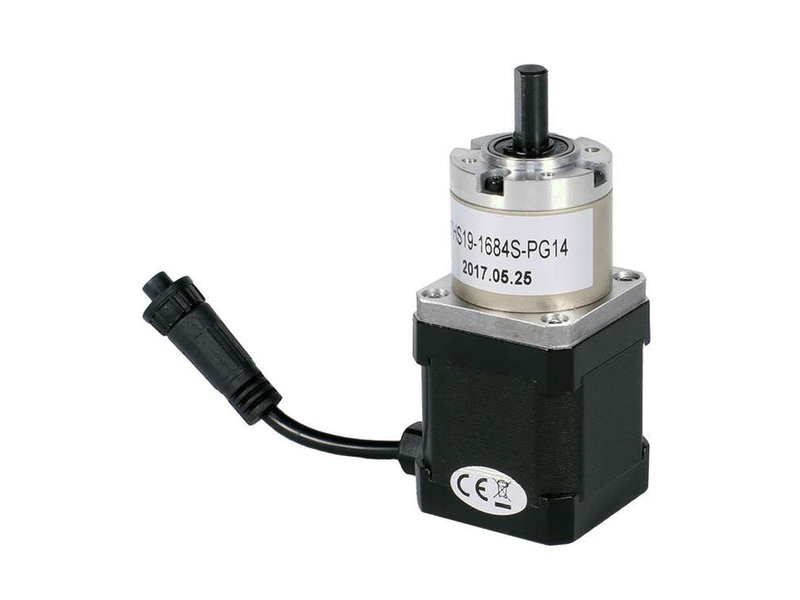

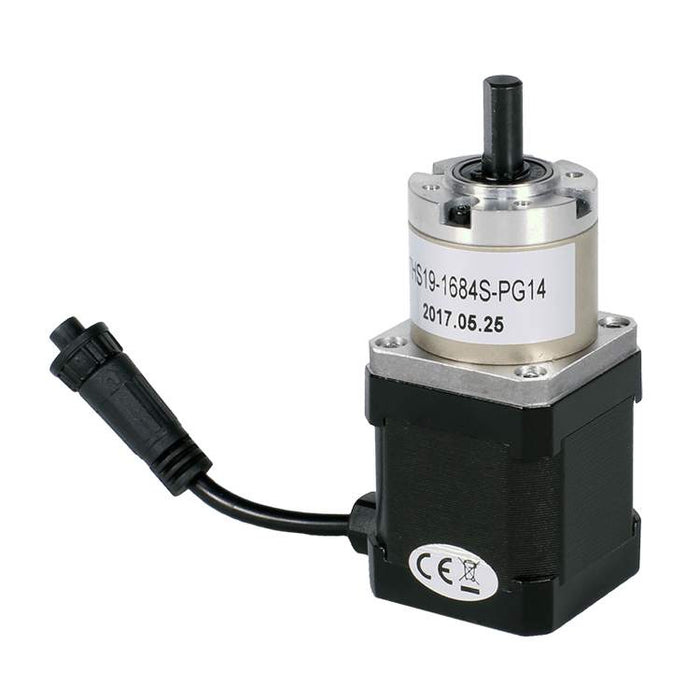

The 5:1, 14:1 and 27:1 Motors have:
Efficient Planetary Gear Drive
8mm mounting shaft

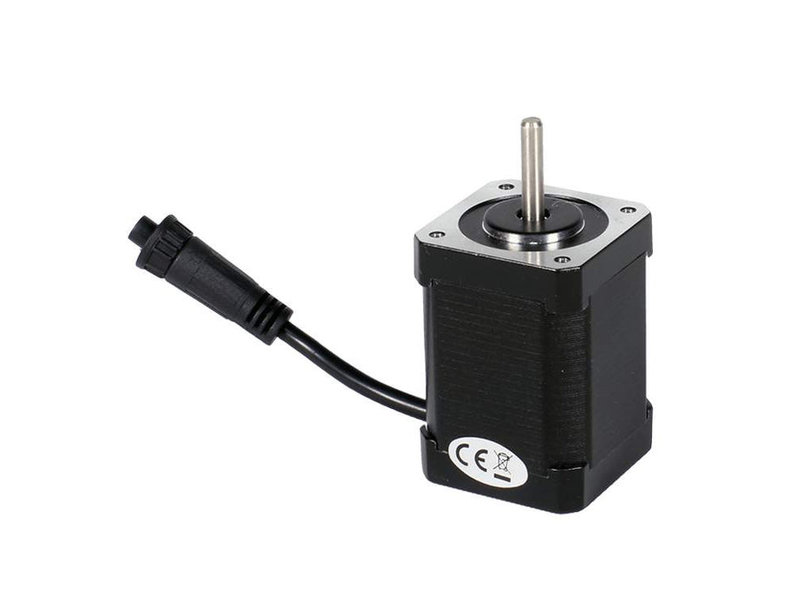

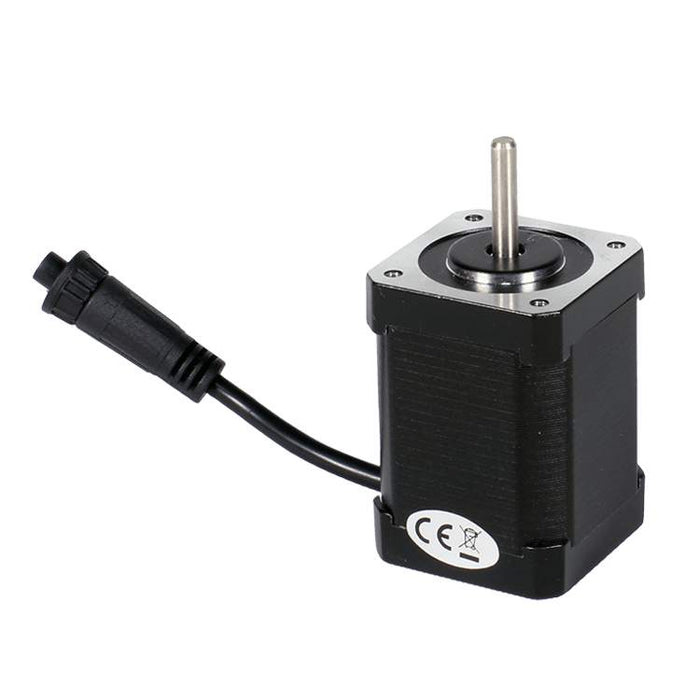

The Direct Drive Motor has:
5mm mounting shaft

All Motors have a short lead Spectrum connector with strain relief. This allows you to plug into the M3/M4 port of the Spectrum with no soldering or crimping.

Extension cables are NOT included and ARE needed.

Please note: No hardware, pulleys or motor mounts are included with these motors.

Motor Speed


  • 5:1: Fast enough for video but can't do slopes - Good for interviews.
  • 14:1: Strong enough for video and timelapse - moves up most slopes.
  • 27:1: Our strongest Motor - yielding about half the speed and twice the torque of the 14:1 motor.

If you are shooting exclusively timelapse, this is what we recommend for Dynamic Perceptions integrations.

  • Direct Drive: Our fastest motor and our choice to be paired with the shark slider for interviews. Great for all horizontal moves and turbo mode. Not for Dynamic Perceptions Stage 1 or Stage 0.

If you need HW, mounts and/or pulleys for this motor, please reach out to [email protected] with the request.
