xSPINE Support Vest for All Body Sizes, Front Mount for xSPINE ...

Not yet rated | Create your own review
€ 9.605,00 Excl. tax Excl. Shipping costs

xSPINE Support Vest for All Body Sizes, xR3ACH Heavy-Duty Stabilization Arm, Front Mount for xSPINE, xR3ACH Comes in Regular Left-Side Setup

Delivery time:
3-4 Werktage / 3-4 working days
Article number:
X-xSPINE-xR3-Reg-Frnt
Quantity:
Add to cart

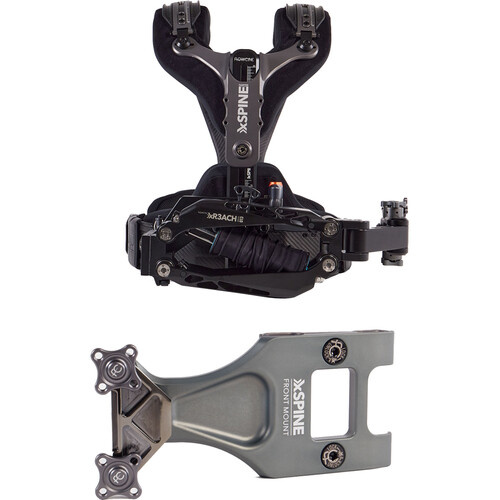

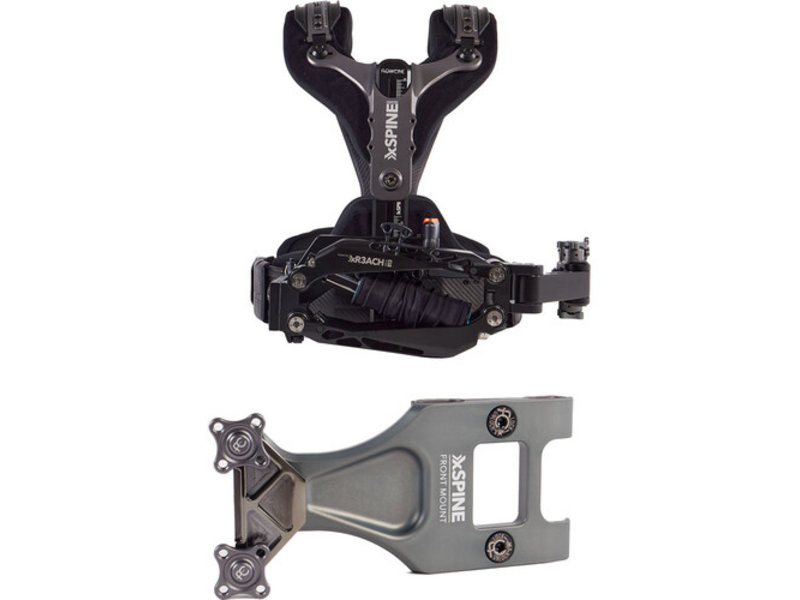

Create smooth movements and stabilize your footage with the xSPINE + xR3ACH Regular + Front Mount from FLOWCINE. The bundle includes the xSPINE stabilizer vest, the xR3ACH stabilizer arm in regular setup, and a front mount for xSPINE.

The adjustable vest fits just about any body size and supports loads from 37 to 64 lb. The xR3ACH arm mounts on the left side of the vest, and the front mount provides a universal mount for a variety of support arms such as the xARM or Tiffen and GPI Pro brands. A case is included to store and transport the bundle.

FLOWCINE xSPINE Vest and xR3ACH Regular Bundle

Capture professional, smooth camera movements by flying your rig with the xSPINE Vest and xR3ACH Regular Bundle from FLOWCINE. The camera's weight is distributed to the shooter's torso, and the spring cores of the articulating stabilization arm enable your rig to float through the set, creating an immersive experience for the audience as it follows your subject through the scene.

The xSPINE fits all body types and allows you to support a stabilizer rig and save stress on the back and shoulders. The included xR3ACH arm provides a support arm for other stabilizers, and it also can be used as a stabilizer arm on its own. It includes three swappable spring cores to support loads from 37 to 64 lb, and there are small, medium, and large middle brackets included to finely adjust the mounting block position. A carry case with custom-cut foam is included to store the components.

Vest Mounting Options

The xSPINE is built to be able to take a wide range of accessories and mounting options. There are multiple mounting options for the following products and accessories:

  • FLOWCINE xBONE CF back mount
  • FLOWCINE xR3ACH (with xSPINE mount)
  • FLOWCINE xBONE (with xSPINE mount)
  • FLOWCINE front mount
  • FLOWCINE GLINK

Size Adjustments

The xSPINE has adjustments for all kinds of body sizes. The shoulders and sides have telescoping adjustments that can be set so they fit both larger and smaller operators. Both front and back can quickly be adjusted in height.

xR3EACH Features

Large range of different lifting capacities in one single arm section

Regular mounting on the left side of the operator

15.3" boom range

Arm weighs up to 9.9 lb depending on the middle bracket used (small, medium, and large included)

Frictionless and noiseless design

Easy to tune and easy to maintain

All tools needed are included

Ships with three spring cores for a range between 37 to 64 lb

Ships in a Peli AIR 1555 case with custom foam

FLOWCINE xSPINE Front Mount

Camera operators who would like to attach a stabilization arm to their xSPINE vest can do so via this xSPINE Front Mount from FLOWCINE, which extends a standard universal socket block to the shooter's left or right. This enables it to be connected to a variety of support arms, including models from GPI Pro, Tiffen, or the xARM from FLOWCINE.

The mount can slide down on the vest's vertical rails to create a lower center of gravity, clamped in a position usually blocked by the belt buckles of many competitors' stabilizer vest systems. With its adjustable height and ambidextrous design, the front mount can be customized to be used by multiple shooters as it is passed between the A, B, and C cameras.

Mount Stabilization Arms onto xSPINE

The xSPINE Front Mount extends its universal socket block off to the shooter's side, allowing proper alignment when attaching an existing stabilization arm. It is compatible with reputable manufacturers like Tiffen and GPI Pro, along with another product in the xSPINE array, the xARM.

Customizable Height

The front mount is designed to slide up and down along the center rails of the xSPINE, enabling the camera operator to choose a height that is most comfortable. Particularly at its lowest position, the mount provides ample room for the stabilization arm to move freely.

Regular or Goofy

The front mount can be secured either regular or goofy, accommodating both left- and right-handed shooters

In the Box

  • FLOWCINE xSPINE Vest and xR3ACH Regular Bundle
  • FLOWCINE xSPINE Vest
  • xR3ACH Stabilizer Arm (Regular)
  • Blue Spring Core (37 to 49.5 lb)
  • Orange Spring Core (44.5 to 56 lb)
  • Purple Spring Core (52 to 64 lb)
  • Small Middle Link Bracket
  • Medium Middle Link Bracket
  • Large Middle Link Bracket
  • 4-Point Tool
  • Ratchet Wrench
  • Hex T-Handle
  • Bottle of Maintenance Fluid
  • Peli AIR 1555 Case with Custom Foam
