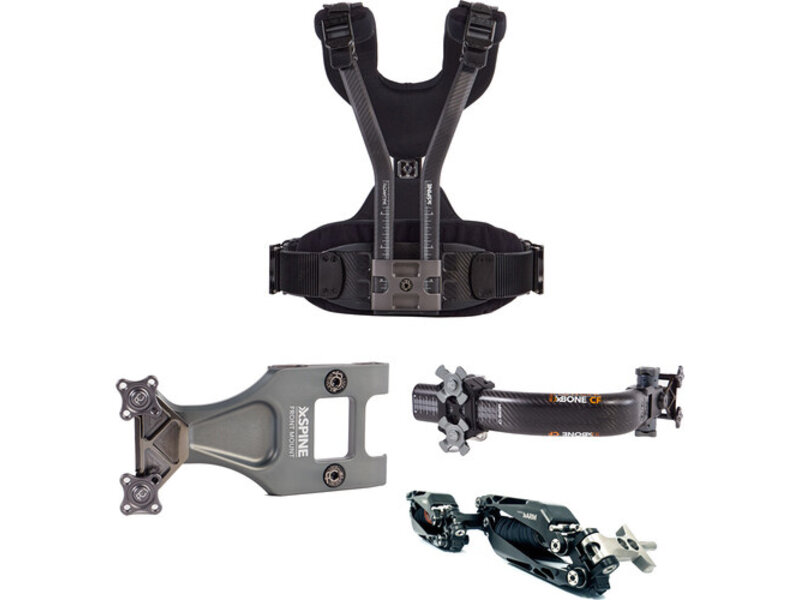

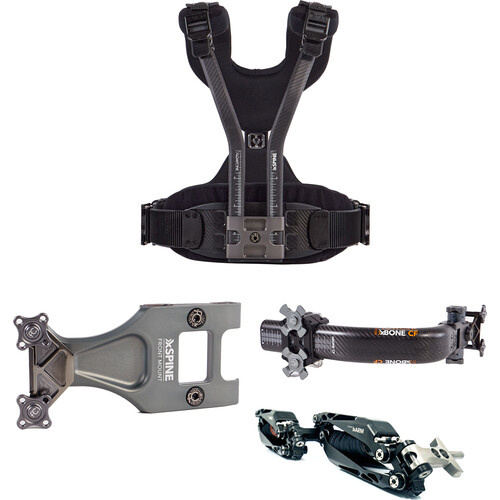

xSPINE Vest, Front Mount, xBONE, and xARM Stabilization System

Not yet rated | Create your own review
€ 15.255,00 € 14.850,00 Excl. tax Excl. Shipping costs

xSPINE + xBONE CF + Front mount + xARM - FC-X-xSPINE-xBCF-Frnt-xARM

Delivery time:
3-4 Werktage / 3-4 working days
Article number:
X-xSPINE-xBCF-Frnt-xARM
EAN Code:
xSPINE + xBONE CF + Front mount + xARM
Quantity:
Add to cart

Key Features

  • Stabilizer Rig for All Body Sizes
  • Heavy-Duty Gimbal Stabilization Arm
  • Dual-Layered Air Mesh System, QR Pins
  • Can Be Mounted Regular or Goofy

Capture professional, smooth camera movements by flying your rig with the xSPINE Vest, Front Mount, xBONE, and xARM Stabilization System from FLOWCINE. The camera's weight is distributed to the shooter's torso, and the spring cores of the articulating stabilization arm enable your rig to float through the set, creating an immersive experience for the audience as it follows your subject through the scene.

The front mount can slide down on the vest's vertical rails to create a lower center of gravity, depending on the camera operator's preference. The back-mounted xBONE extends around the torso, providing a mounting point for the xARM component. With its adjustable height and ambidextrous design, this stabilization system can be customized to be used by multiple shooters as it is passed between the A, B, and C cameras.

Articulated Stabilization Arm

Add a heavy-duty stabilization arm to your vest and gimbal rig with the xARM Double-Section Articulated Stabilization Arm from FLOWCINE to achieve smooth, professional motion shots. The xARM features a frictionless, noiseless, spring-loaded design that takes minimal force to adjust.

The xARM has multiple points of articulation in its two sections that can be adjusted with the included tools. Its full boom extension range is 30.7". The arm ships with three neoprene-lined, swappable spring cores that can support different load capacity ranges so you can balance your rig with the least amount of force: the blue core supports 37 to 49.5 lb, the orange core supports 44.5 to 56 lb, and the purple core supports 52 to 64 lb.

The arm's components are made of a combination of stainless steel, aluminum, titanium, and carbon fiber for a durable construction, and they also keep the arm lightweight at approximately 11 lb. Universal mounting socket blocks are included to mount onto various vests and rigs, and arm posts are also included to mount Tiffen and PRO standard gimbals.

All the tools required to assemble and adjust the arm are included, and a hard case with custom-cut foam is provided to store and transport your xARM.

Spring-loaded, double-section articulated stabilization arm

Frictionless, noiseless design

Three sets of spring arms included providing load capacity range of 37 to 64 lb

Up to 30.7" boom range

Three lightweight titanium arm posts for Tiffen and PRO gimbals included

Hard-shell case with custom-cut foam and tool set included

FLOWCINE xSPINE Vest

The xSPINE Vest from FLOWCINE is the world’s first universal vest made for all kinds of camera operators in mind, made for versatility and moveability. The xSPINE can currently be used for Steadicam™ operation both as front and back mount in various configurations. It also allows the operator to mount a gimbal support system such as the GLINK. There will be more mounting options and accessories down the road as well. The xSPINE is a low-weight, 8.6 lb vest designed to be as comfortable and rigid as possible. The pads include a dual layered air mesh system with air channels, enabling good ventilation while at the same the memory foam makes the vest very comfortable to wear. All parts are made with strong carbon fiber and/or low-weight aluminum, creating a rigid cage that equally distributes the carried payload in the best way possible.

All main sections such as front, back and sides can be detached with quick release pins, to allow the vest to be packed down in a very slim format. All parts are also fully adjustable for different operator sizes. The curved carbon fiber bars in the front keeps the chest region free to ease breathing, also making it an excellent choice for all body size operators. The xSPINE incorporates dual locked ladder strap adjustments in the front, quickly enabling the operator to adjust settings on the fly, and be able to open up or close any side of the vest. The buckles are designed so no accidental opening can be performed, while still allowing the operator to open them safely even while carrying payload to perform adjustments or corrections while resting. The extra wide straps keep the vest as rigid as possible while maintaining an easy procedure for opening and closing the vest. The xSPINE ships in a soft bag that has room for the vest and the optional xBONE CF. There is also a hard Peli case for rougher travel as an accessory.

FLOWCINE xSPINE Front Mount

Camera operators who would like to attach a stabilization arm to their xSPINE vest can do so via this xSPINE Front Mount from FLOWCINE, which extends a standard universal socket block to the shooter's left or right. This enables it to be connected to a variety of support arms, including models from GPI Pro, Tiffen, or the xARM from FLOWCINE.

The mount can slide down on the vest's vertical rails to create a lower center of gravity, clamped in a position usually blocked by the belt buckles of many competitors' stabilizer vest systems. With its adjustable height and ambidextrous design, the front mount can be customized to be used by multiple shooters as it is passed between the A, B, and C cameras.

Mount Stabilization Arms onto xSPINE

The xSPINE Front Mount extends its universal socket block off to the shooter's side, allowing proper alignment when attaching an existing stabilization arm. It is compatible with reputable manufacturers like Tiffen and GPI Pro, along with another product in the xSPINE array, the xARM.

Customizable Height

The front mount is designed to slide up and down along the center rails of the xSPINE, enabling the camera operator to choose a height that is most comfortable. Particularly at its lowest position, the mount provides ample room for the stabilization arm to move freely.

Regular or Goofy

The front mount can be secured either regular or goofy, accommodating both left- and right-handed shooters.

FLOWCINE xBONE CF Back Mount for xSPINE Vest Stabilization System

Camera operators who would like to attach a stabilization arm to their xSPINE vest can do so via this xBONE CF Back Mount from FLOWCINE, which extends a standard universal socket block to the shooter's left or right. This enables it to be connected to a variety of support arms, including models from GPI Pro, Tiffen, or the xARM from FLOWCINE.

The arm can slide down on the vest's back rails to create a lower center of gravity, and its distance from the hip can be tweaked for optimal balance, depending on the camera operator's preference. With its adjustable height and ambidextrous design, the xBONE CF can be customized to be used by multiple shooters as it is passed between the A, B, and C cameras.

Mount Stabilization Arms onto xSPINE

The xBONE CF Back Mount extends its universal socket block off to the shooter's side, allowing proper alignment when attaching an existing stabilization arm. It is compatible with reputable manufacturers like Tiffen and GPI Pro, along with another product in the xSPINE array, the xARM.

Customizable Height and Lateral Position

The xBONE CF is designed to slide 225mm up and down along the center rails on the back of the xSPINE, enabling the camera operator to choose a height that is most comfortable. The strong and lightweight carbon fiber xBONE can be adjusted 80mm laterally to either create or reduce space away from the person's waist.

Adjustable Socket Block

The universal socket block is adjustable on both the roll and tilt axes, enabling an existing stabilization arm to be positioned according to the specific needs of the shooter.

Regular or Goofy

The front mount can be secured either regular or goofy, accommodating both left- and right-handed shooters.

In the Box

  • FLOWCINE xARM Double-Section Articulated Stabilization Arm
  • Front Socket Block
  • Back Socket Block
  • 3 x Arm Posts
  • 2 x Blue Spring Cores (22.5 Kg / 37-49.5 Lbs)
  • 2 x Orange Spring Cores (20-25.5 Kg / 44.5-56 Lbs)
  • 2 x Purple Spring Cores (23.5-29 Kg / 52-64 Lbs)
  • Wrench Kit
  • Peli AIR 1605 Case with Custom Foam

item: FC-X-xSPINE-xBCF-Frnt-xARM

xSPINE fitting - Making all necessary adjustments
