Gecko-Cam
€ 1.945,00 Excl. tax Excl. Shipping costs

TD-3 complete set with power supply unit, cable and control unit ...

Delivery time:
1-2 Werktage / 1-2 working days
Article number:
TD3
Quantity:
Add to cart

... mobile use, optionally feedable with battery power pack, easy handling, high load capacity up to 100 kg, infinitely rotatable in both directions. Expandable with platform. Gladly on request.

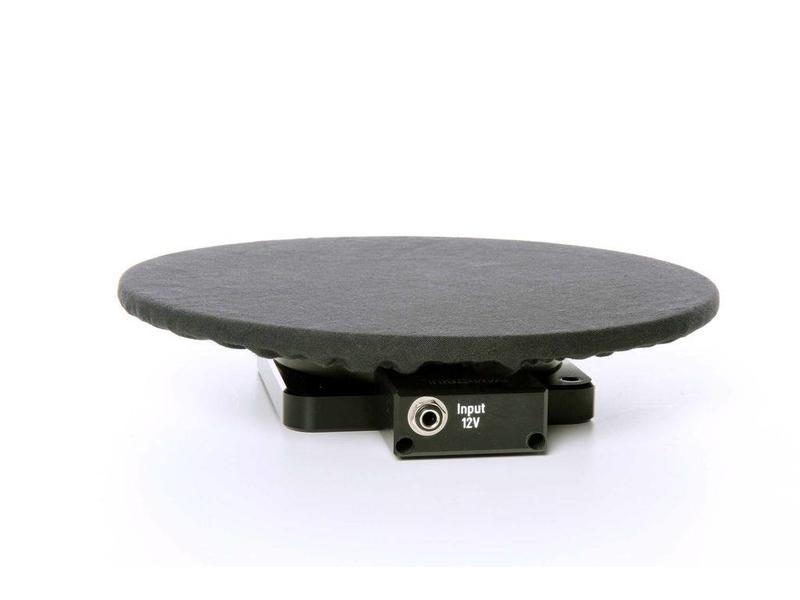

Turntable TD-3 complete set with cable and control unit, mobile use, can be fed with battery power pack (battery is optionally available), easy handling, high load capacity of up to 100 kg, infinitely rotatable in both directions. Optionally expandable with platform see pictures also available with Molton fabric. Gladly on request.

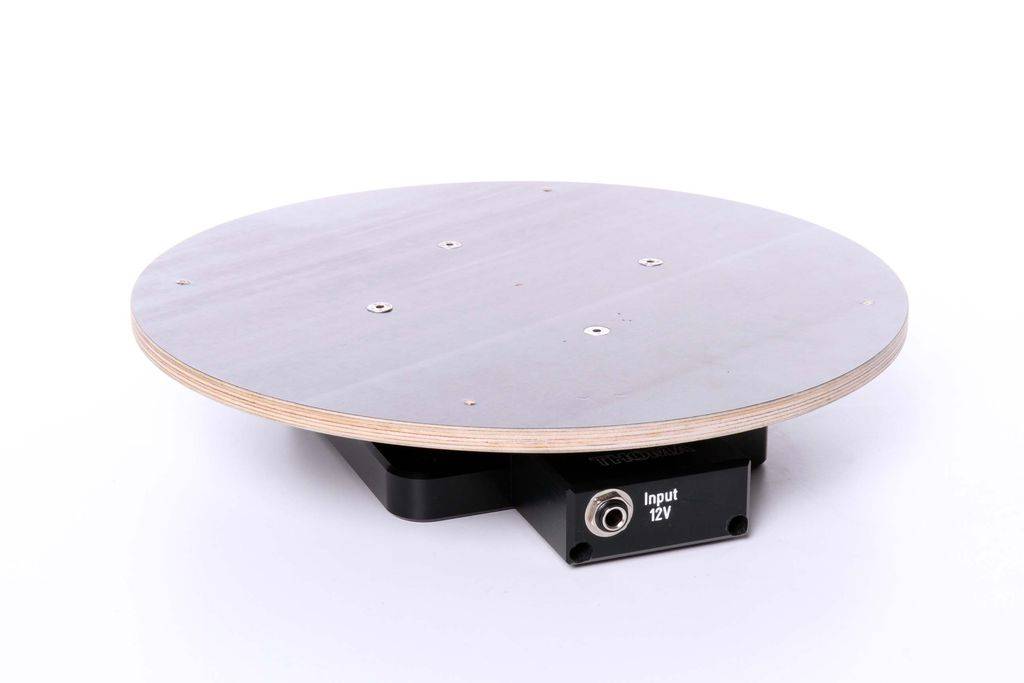

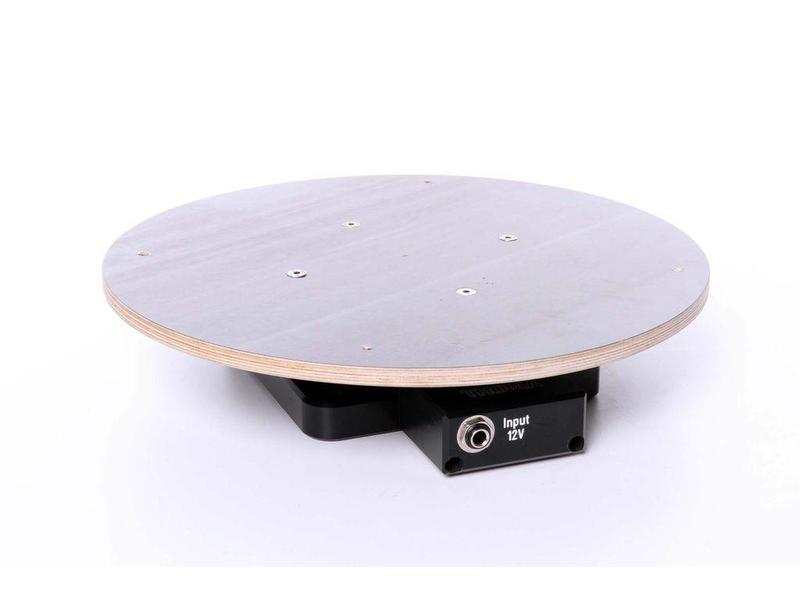

Platform, a example: Multiplex, Ø38cm, 1,8cm thick - EUR 75,00 netto / inkl. 4x M5/30 screws

In The Box:

: Power supply with XLR / socket

: Rotary control

: Turntable TD-3

Technical Datas:

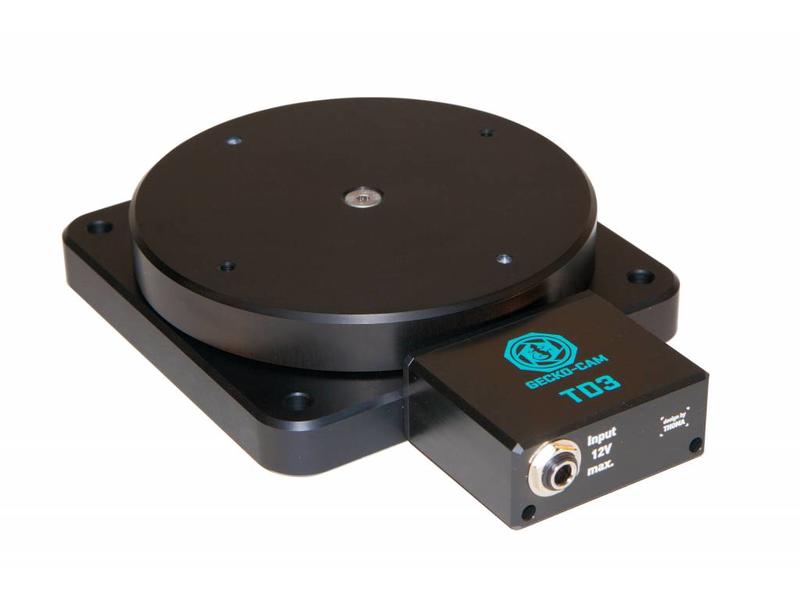

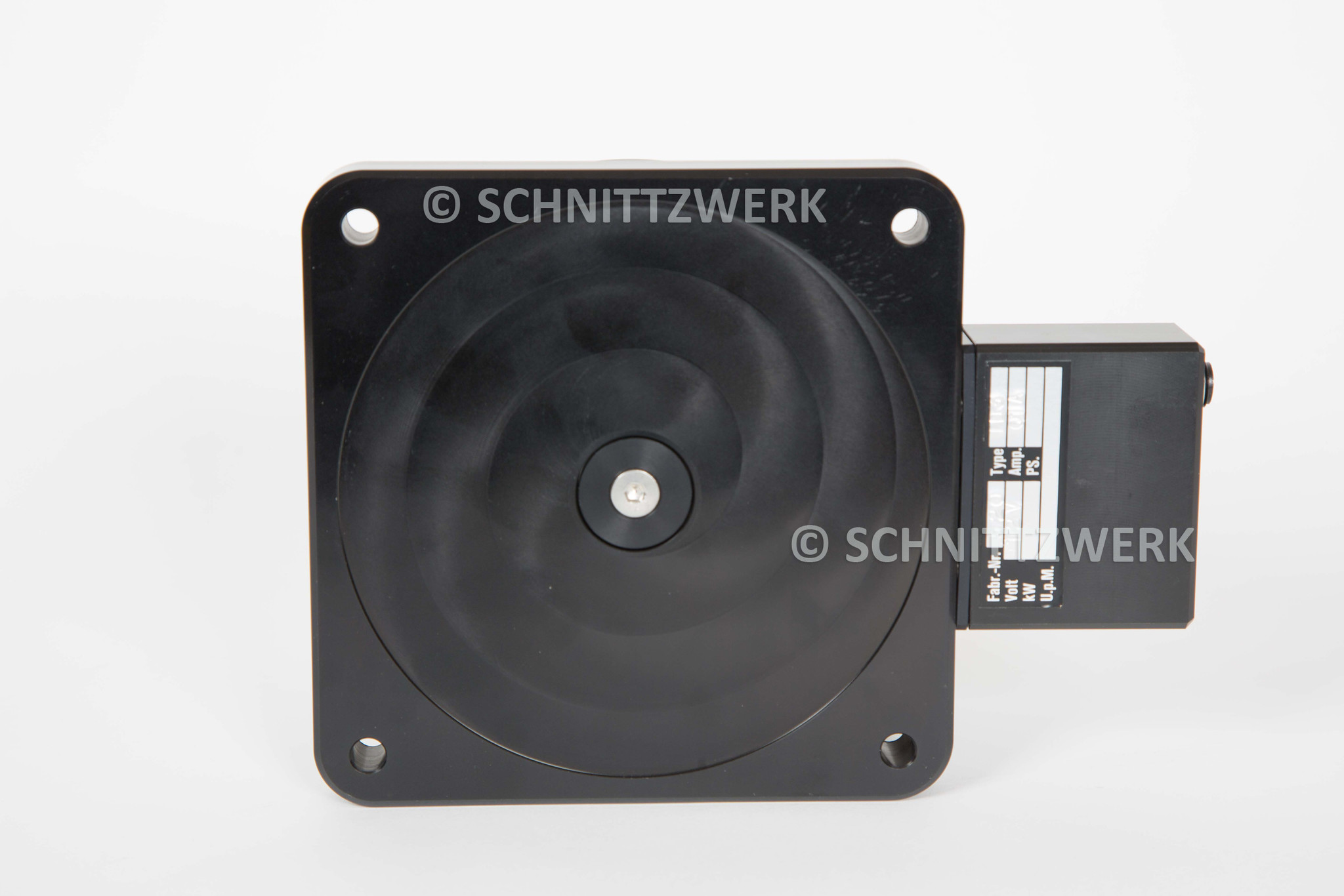

Rotating plate:
wheel and disc device for smooth and non-jerky movements
slip friction clutch to protect the motor for overworking
to use with weights up to 100 kg
precision-motor-gear-block with 12V / 0.5Amax
4 tapholes with thread diameters M5
Basis with 4 drill-holes for fastening (diameter: 8.3 mm)
Dimensions: 15.4 cm x 4 cm x 15.4 cm
weight: 2.4 kg
material: aluminum

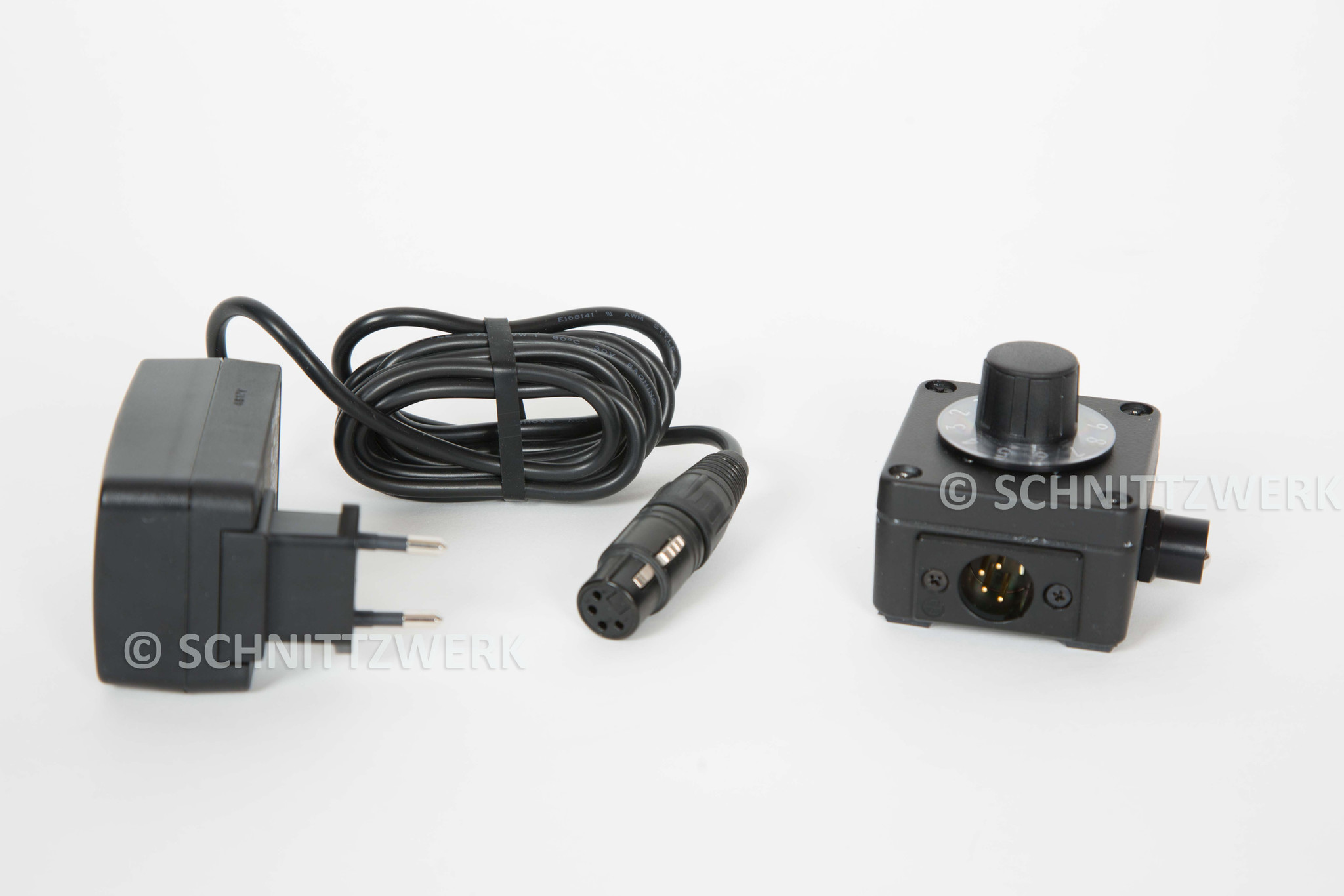

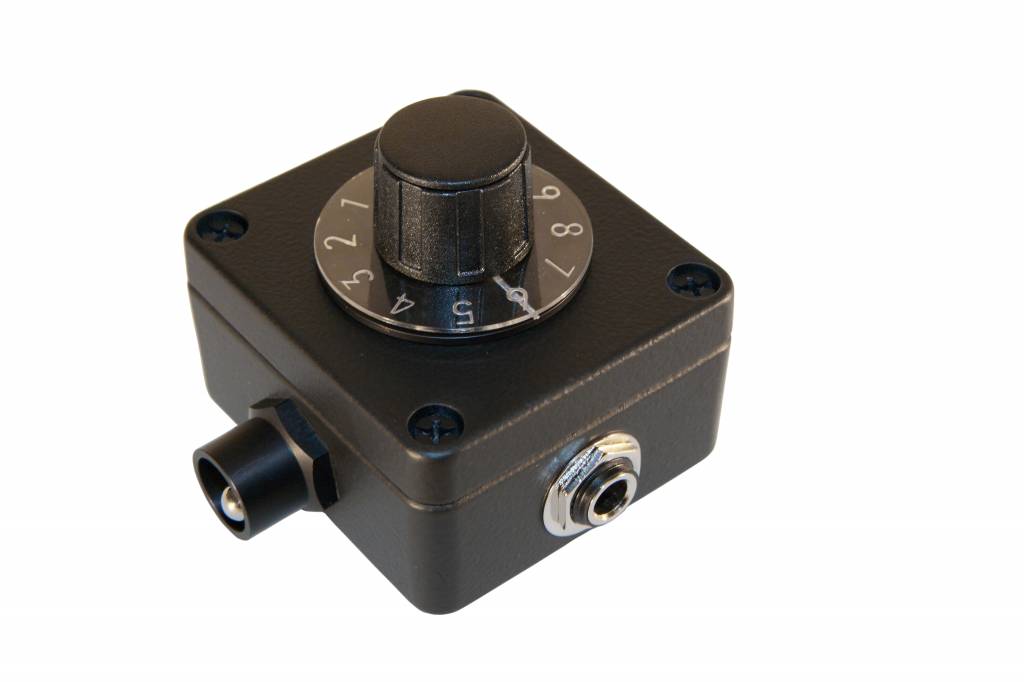

Speed-control-electronic:
infinitely variable speed adjustment
input voltage: 12 - 24 volts
output voltage: 0 - 12 volts, stabilized (DC-DC converter)
input socket: XLR, 4 pin, (Sony norm)
output socket: 6.35 mm audio plug

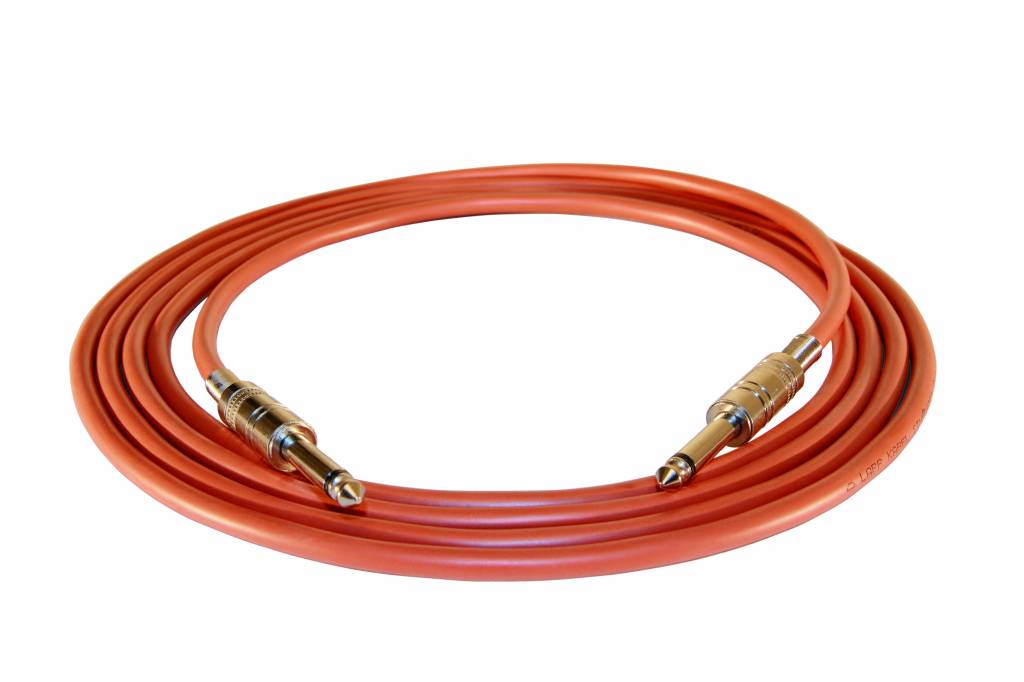

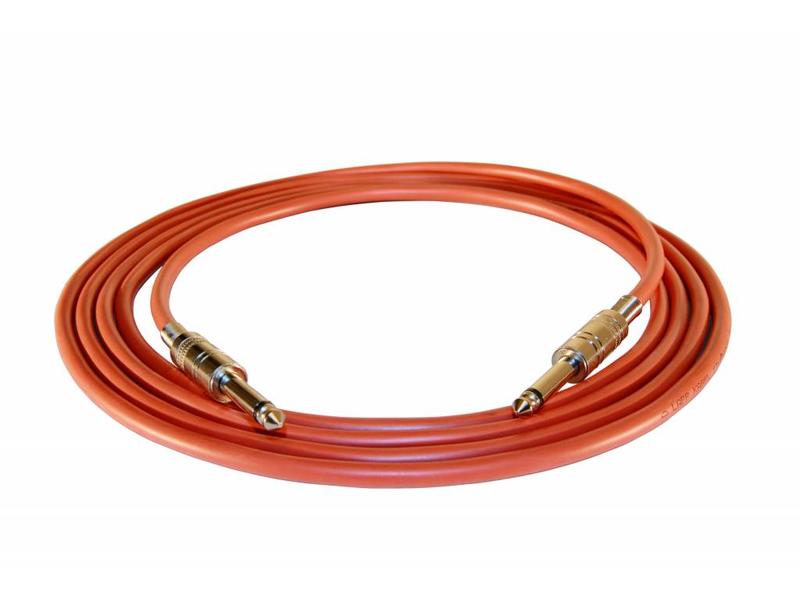

Cable:
standard cable 2 pol.
plug: two of 6.35 mm audio plug
length: 3 meters

Uni-Power-Supply:
input voltage: 100 - 240 volts
output voltage: 12 volts, stabilized
output: max. 1.3 amps
adapter for Europe and United states included
adapter for other countries optionally available

The YouTube video shows the TD-3 turntable from Thoma, which passed the technology on to Gecko Cam GmBh. We see this video as a possible application / demo.

The name THOMA turntable stands for precision, quality, perfection and innovation

Awarded the "TECHNICAL OSCAR" in 1992, the owner-managed company THOMA Film- und Videotechnik GmbH & Co. KG from Bavaria, Sauerlach, develops groundbreaking products in the fields of light measurement technology, remote systems and measurement technology for virtual studios.

The Thoma turntable TD3

Thoma turntables TD3 are used in particular for filming packshots, on which the product rotates 360 degrees around its own axis and thus vivid representations can be realized in show reels. The traditional Thoma turntable TD-3 can handle loads of several kilograms and is characterized by a low construction height of only a few centimeters and a low weight of only 2.5 kilograms. The speed and direction of rotation of the Thoma turntable is infinitely variable. Outstanding design features include the turntable with the docked motor-gear unit, a slip clutch, four threaded holes for external attachments and a speed controller with a direction switch. The robust and precise workmanship of the Thoma

Delivery: The cables can vary in color (red or black). Technically, the TD-3 model from Thoma is delivered, which has been manufactured by Gecko Cam since 2018. The product is i.a. successfully distributed by us. Mr. Georg Thoma who sold this product / model with all the licenses and rights to Gecko-Cam.

Durable, uniform rotation, reliable.

The basic version of the TD-Series was built for product presentation. With it's superior mechanics with adjustable speed, it's able to provide a uniform rotation at all speed settings.

Used at home shopping television, food shootings, trade fairs it handles all different purposes you're going to use it for.
