Zacuto
€ 2.471,00 € 2.395,00 Excl. tax Excl. Shipping costs

Kameleon EVF Pro - SET - incl. Bracket and cable

Delivery time:
3-4 Werktage / 3-4 working days
Article number:
Z-4PVC, Z-M-AEM, Z-KEVF-P
Quantity:
Add to cart

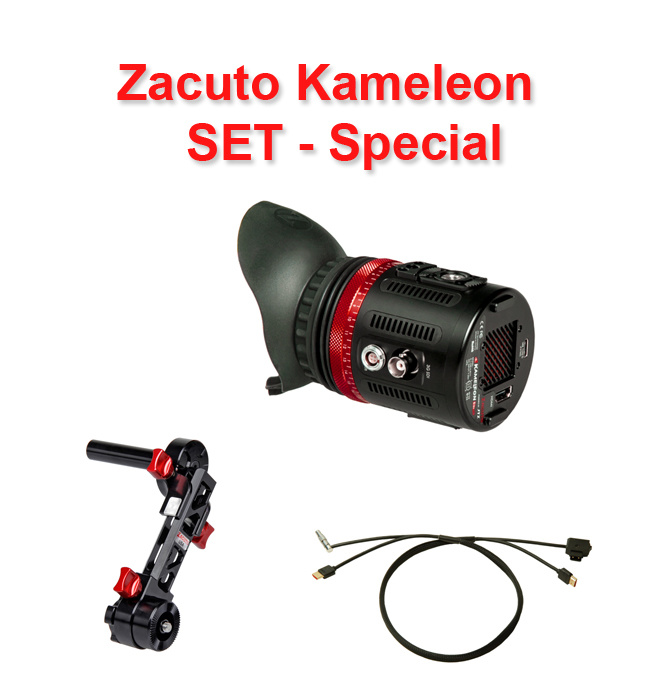

Zacuto Kameleon Pro - SET

Set includes / scope of delivery:

1 x Kameleon Pro Viewfinder, # Z-KEVF-P

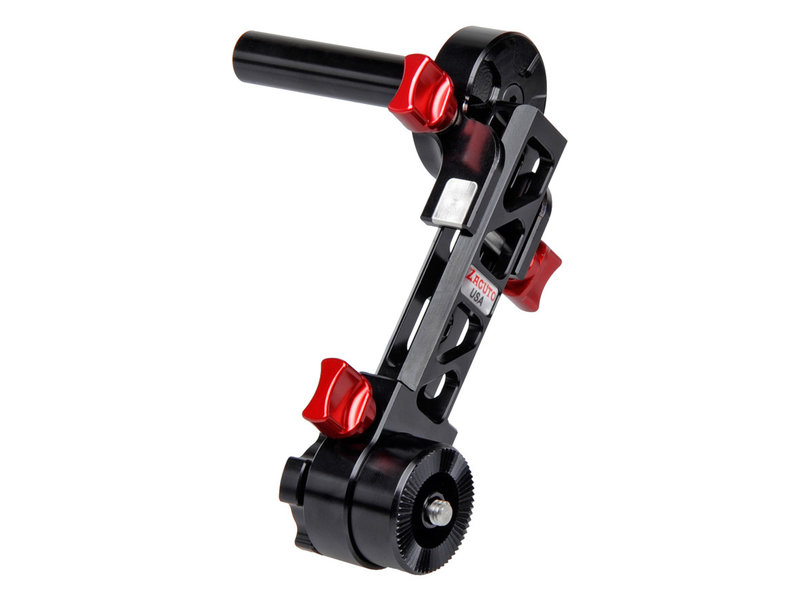

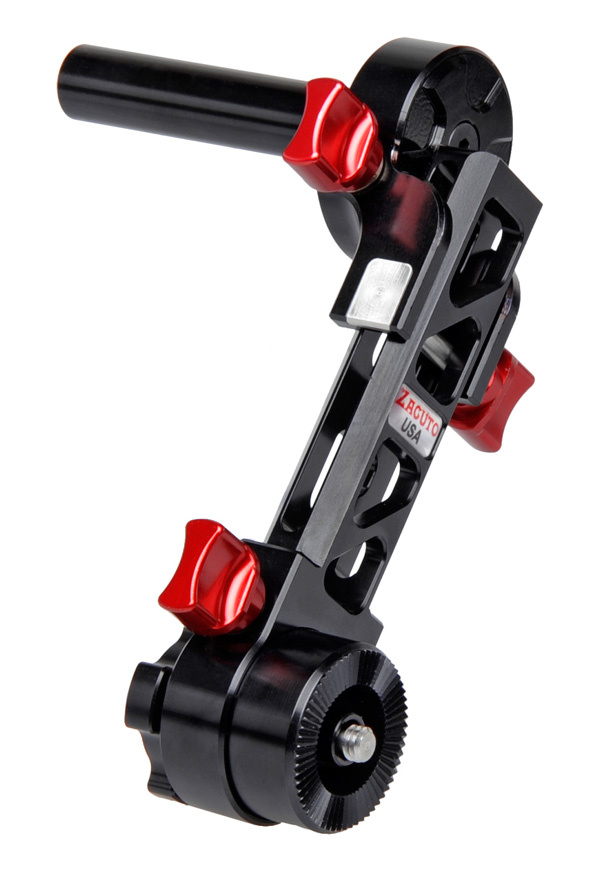

1 x Axis mini, # Z-M-AEM

1 x 4-pin Power and Video Cable with Power Switch, # Z-4PVC

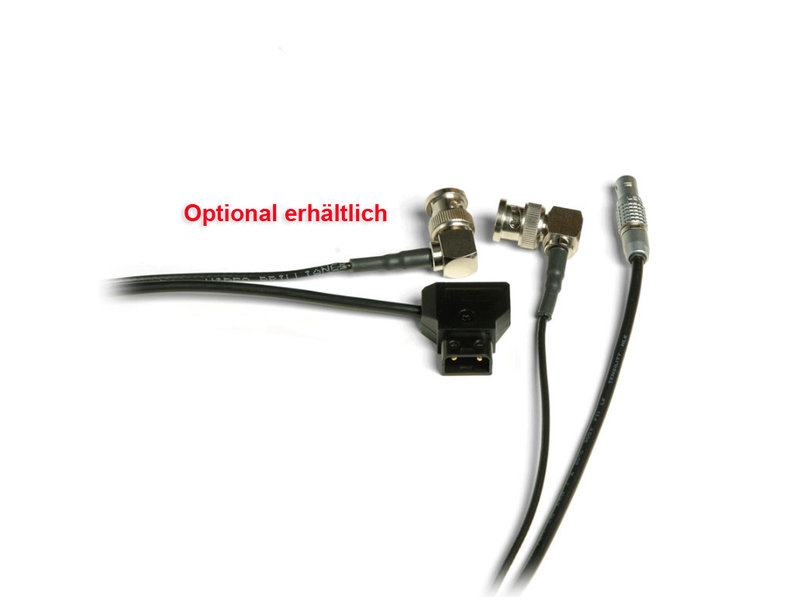

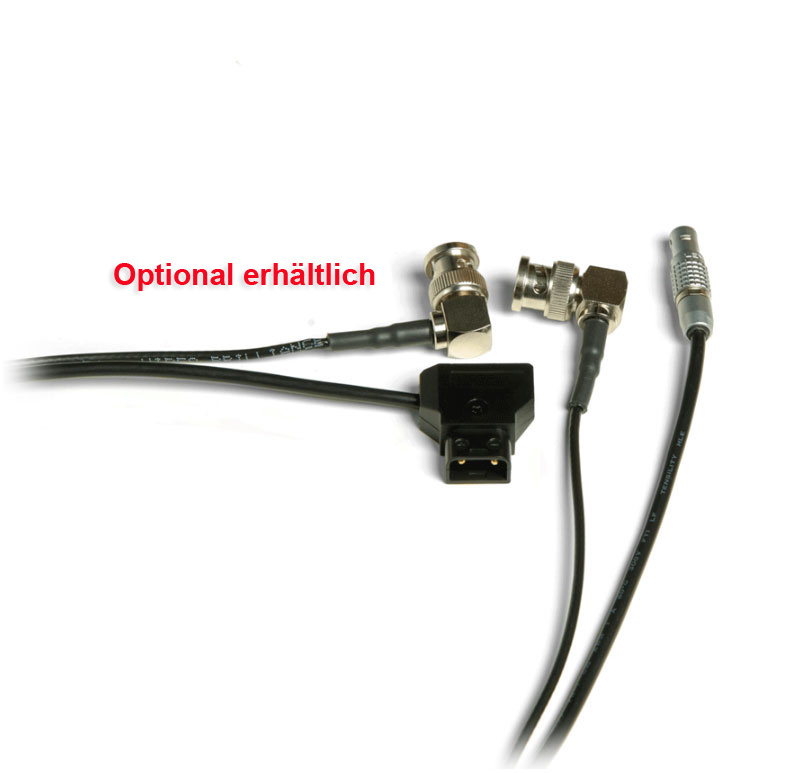

optional: Zacuto HDMI Power and Video Cable with Power Switch

Zacuto 4-pin Power and Video Cable with Power Switch

Combined power and video cable with 3G-SDI connection and power button for operating the Micro-OLED viewfinder Kameleon EVF from Zacuto

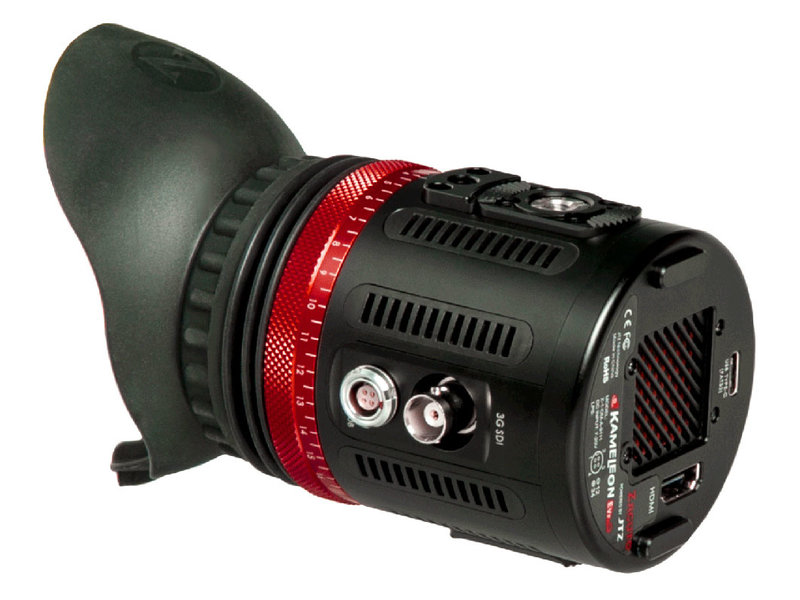

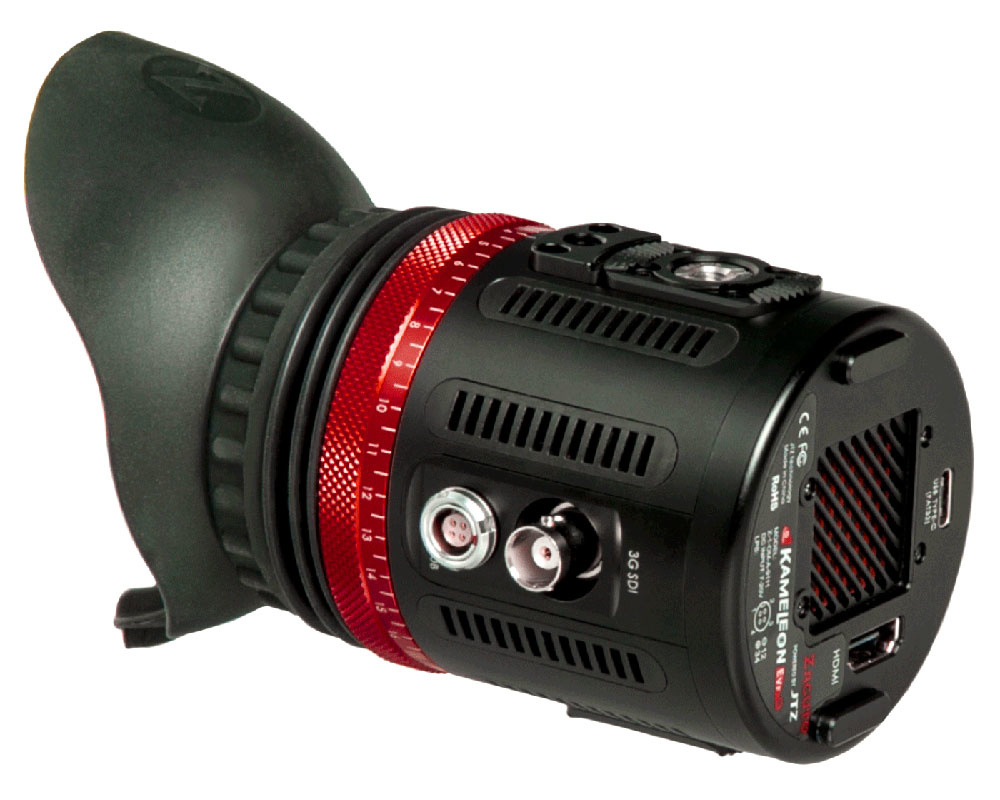

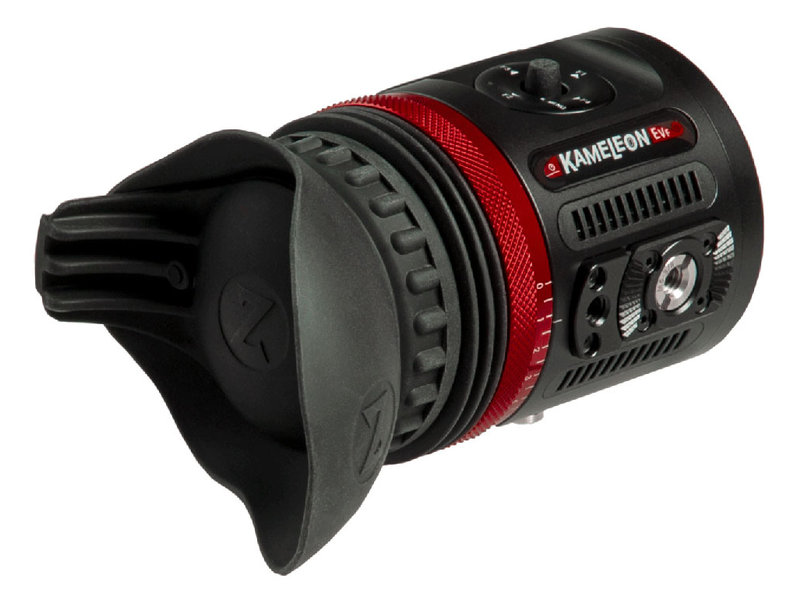

Zacuto Kameleon Pro 0.71 "Micro-OLED viewfinder with HDMI and 3G-SDI connections, dioptric correction wheel, anti-fog protection technology, ARRI rosettes, waveform and vectorscope for video resolutions up to 4K DCI

Key Features

The Kameleon EVF Pro, powered by JTZ, is an electronic 0.71 "Micro-OLED viewfinder with HDMI and 3G-SDI input for numerous camera systems. The Kameleon EVF Pro is the successor to the Kameleon EVF and offers a revised interface the software functions waveform and vectorscope. The new overlay enables a brighter, more colorful picture and helps prevent burn-in. The Kameleon EVF Pro supports video resolutions up to 4K DCI (4096 x 2160 pixels) via HDMI or Full HD (1920 x 1080 pixels ) via HDMI and 3G-SDI. Numerous integrated software functions allow in-depth analysis of the image. The EVF is operated via the 4-pin Lemo-0B connection with 7 to 20 V DC. ARRI rosettes are available for assembly on both sides Disposal.

Built-in diopter correction wheel from -1 to +4
Integrated 2-stage anti-fog protection technology
Automatically closing eyecup against incident sunlight
Menu navigation by joystick and function keys
ARRI rosette on both sides
LUT import
Built-in quiet fan against overheating
Technical specifications:
Screen: 0.71 "Micro-OLED with approx. 6.5 million pixels
Contrast ratio: 10,000: 1
Aspect ratio: 16: 9
Native resolution: 1,920 x 1,080 pixels (Full HD)
Color depth: 24 bit RGB
Pixel density: 3,103 ppi
Supported video resolutions:
HDMI - 4K DCI (4096 x 2160), Ultra HD (3840 x 2160), Full HD (1920 x 1080p / i), HD (1280 x 720p)
3G-SDI - Full HD (1920 x 1080p / i), HD (1280 x 720p)
Sonftware functions: Waveform, Vectorscope, Custom Scaling, Frame Lines, Calibration Settings, Center Marker / Crosshair, Anamorphic, 4: 1 Zoom, Image Flip, False Color, Red Line Peaking, Freeze Frame, Zebras, Histogram, Audiometers, 4 programmable hotkeys, 3D LUT import, SMPTE color bars, edge enhancement levels 1-3 (peaking)

Connections:
1x HDMI via HDMI-A
1x 3G-SDI via BNC
1x USB via USB-C (for LUT import and firmware updates)
1x power supply DC via 4-pin Lemo 0B
General product information:
Dimensions (W x H x D): 124.46 x 69.85 x 71.88 mm (4.9 x 2.75 x 2.83 in)
Weight: 425.24 g (15 oz)
Operating voltage: 7 - 20 V DC (via Lemo 0B)
Power consumption: 5 W

The Kameleon Pro EVF, "powered by JTZ", offers all the excellent features of the original PLUS Waveform, Vectorscope, and a new display interface. With this EVF and our trio of powerful free EVFs, we have an EVF for every shooting style. The Kameleon differs over the Graticals by offering 4K HDMI input downscaled to 1080P, and 3D LUTS. To see more comparison, click here.

Want to upgrade your Kameleon to the Kameleon Pro? Click here.

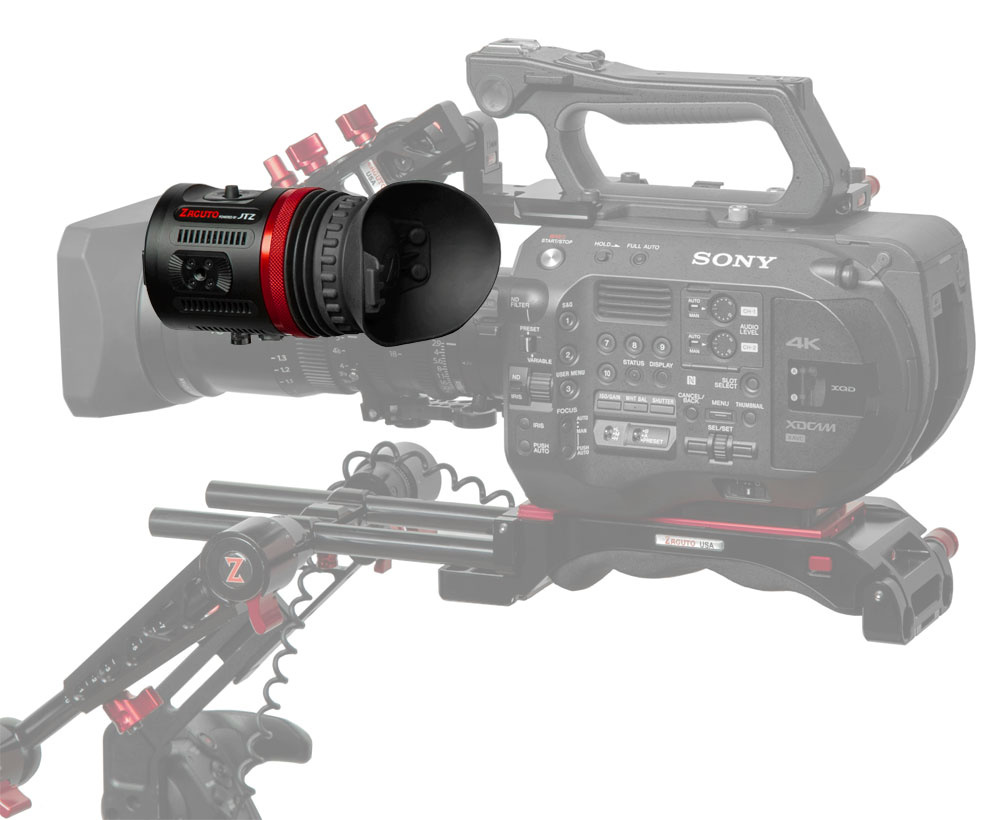

The Kameleon has a 4 pin Lemo power jack and a single SDI and HDMI input. The Kameleon is the perfect EVF for Mirrorless and DSLR cameras and it's SDI input adds versatility so that you can use it on a wide variety of other cameras. Like all Zacuto EVFs, It features a built-in -1 to +4 diopter range and Zacuto’s patented essential anti-fog coating formula. It never fogs in humidity or freezing temperatures. An auto-closing eyecup door helps prevent your display from getting burned by the sun

Tech Specifications

Dimensions: 4.9 "x 2.75" x 2.83 "
Weight: 15 oz

Micro-OLED display:

Dimension: 0.71 ”diagonal
Contrast: 10,000: 1
Color depth: 24-bit RBG
6.5 million pixels for a hugely expanded
Pixel Info - 3103 PPI

Power:
Power input: 7-20V
Power input port: 4 pin LEMO 0B
Power consumption: 5W

Connections:

HDMI x 1
SDI x 1
USB-C x1 for LUT imports & firmware updates

HDMI input: 4K DCI, 4K, 1080p, 1080i, 720p

SDI input: 3G SDI, 1080p, 1080i, 720p

Physical Features:

Joystick menu / function button
Adjustable diopter ring
Drop in diopters for additional correction (+1, +2, +3, +4)
Auto Closing Eyecup
2-step anti-fog shields
Arri rosette on both sides
Cooling fan

Software features:

Custom scaling
Frame lines
Calibration Settings
Center marker / crosshair
Anamorphic
4: 1 zoom
Image flip
False
Red line peaking
Edge Enhancement Levels 1-3 Peaking
Freeze
Zebras
Waveform
Vectorscope
Histogram
Audiometers
4 programmable hotkeys
3D LUT import
