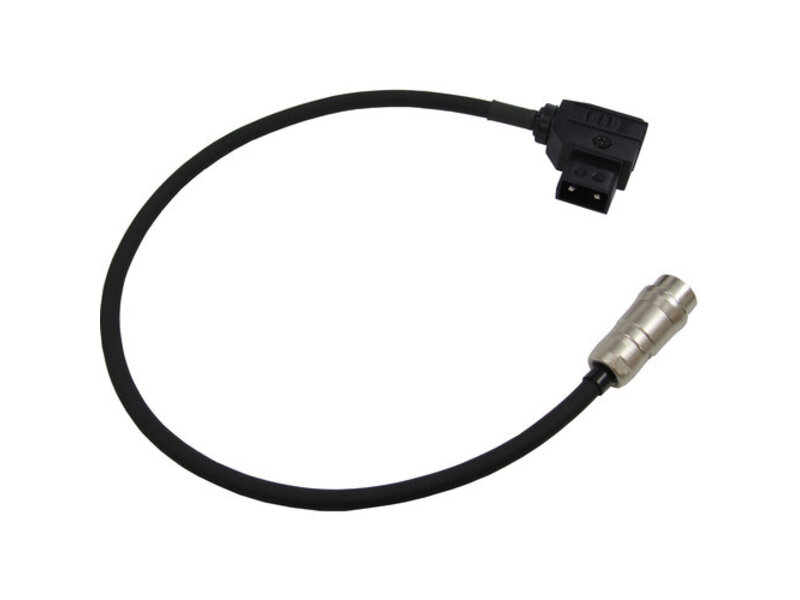

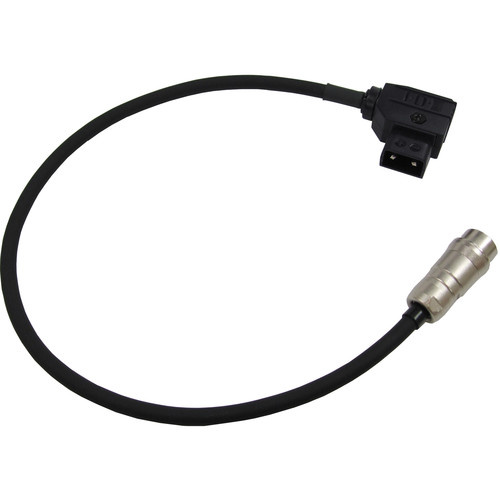

IDX C-ZLPRO D-Tap to Hirose Cable for Canon CINE-SERVO Zoom Lenses (12.5")

The IDX C-ZLPRO powers Canon's CINE-SERVO zoom lenses with cameras that otherwise cannot due to lack of DC power supply to the lens. The C-ZLPRO has a D-Tap plug to HR10 10J-12S connector and is 12.5" long. It allows 12-17V DC to be supplied either directly from batteries such as the ENDURA DUO or CUE series, or from the D-Tap output from IDX ENDURA V-Mount plates.

Description

C-ZLPRO has been created to fulfill the demand for a means to power Canon's CINE-SERVO zoom lenses with cameras that would otherwise not have the ability due to lacking a DC power supply to the lens. The C-ZLPRO has a D-Tap plug to HR10 10J- 12S connector and is 18" long. It allows 12- 17V DC to be supplied either directly from batteries such as the ENDURA DUO or CUE series, or from the D-Tap output from IDX ENDURA V-Mount plates.

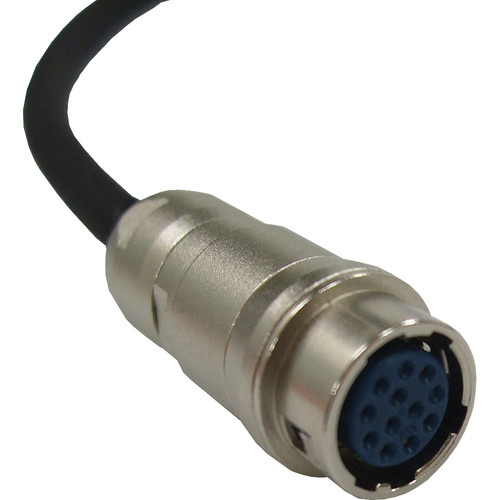

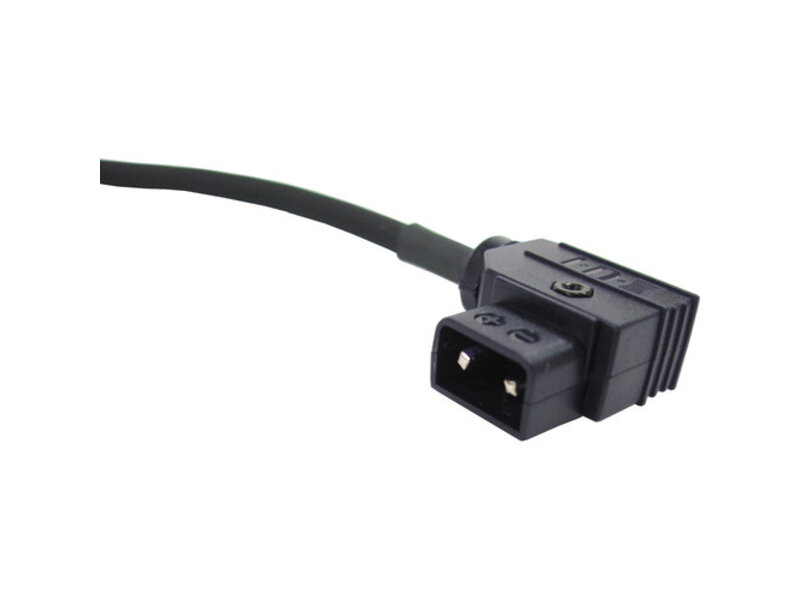

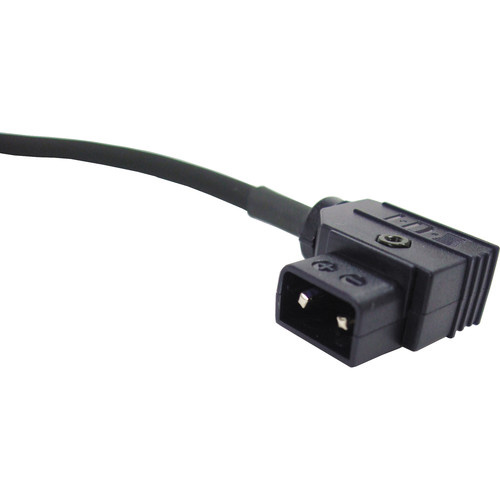

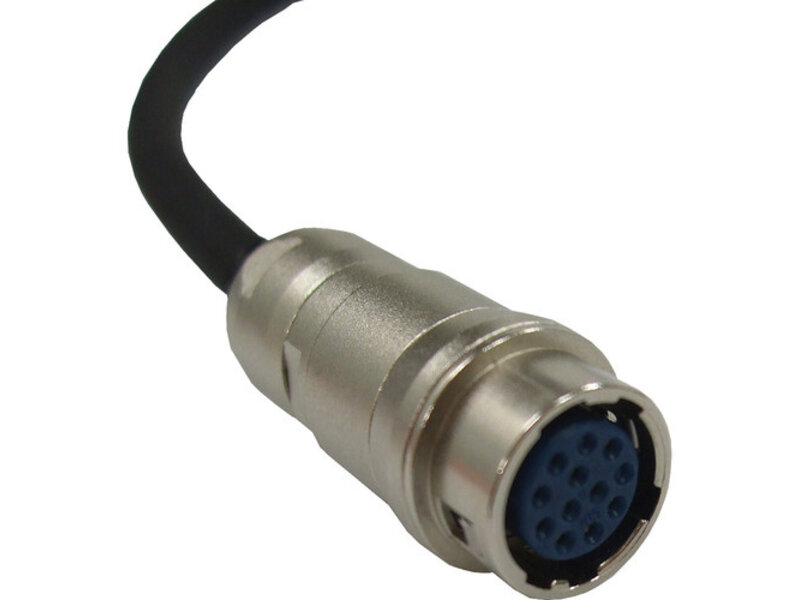

Cable Assembly: D-Tap Plug (50W max) Hirose HR10-10J12S (2A Max)
DC Output: Hirose: 2A, Pin 3: (-), Pin 6: (+)
Cable Length: 18 inches
Weight 0.08 lbs
