Supports Up to 1080p Resolution, 2500 cd/m2 Brightness, X-SBL Technology, 85° Viewing Angles ...

Not yet rated | Create your own review
€ 5.520,00 € 5.240,00 Excl. tax Excl. Shipping costs

Supports Up to 1080p Resolution, 2500 cd/m2 Brightness, X-SBL Technology, 85° Viewing Angles ...

Delivery time:
5-7 working days
Article number:
917TS0152
EAN Code:
3700592604514
Quantity:
Add to cart

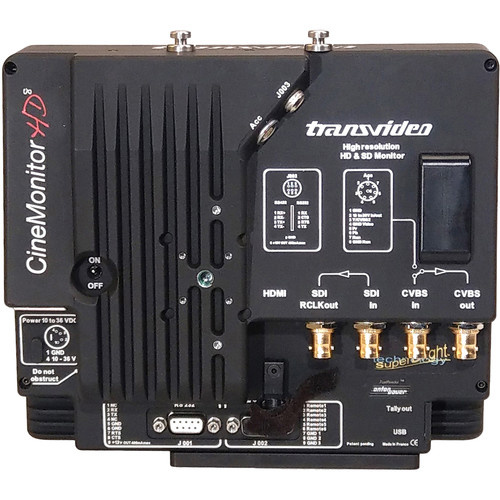

The 8" CineMonitor HD X-SBL Video Monitor from Transvideo supports video at resolutions up to 1920 x 1080. It features X-SBL technology for an eXtreme SuperBright anti-glare bonded screen, up to 2500 cd/m². 85° viewing angles are supported. This monitor has SDI and component video ports, as well as RS-232, RS-232/RS-422, and GPI ports for remote connection. There is a 4-pin XLR input for power as well as a Gold Mount/V-mount compatible battery back. This monitor includes two shoulder strap pins, a bottom slide, a 3.3' 4.5 GHz HDTV BNC cable, a USB adapter for SW updates, a screen protective cover, a microfiber cloth and bag, and a hard case with custom shaped foam.

- LensReader displays in real time the key metadata of /i and LDS lenses: focus with depth of field and hyperfocal point, iris, and zoom

- LensReader supports the Angénieux Optimo DP 25-250, Arri/Fujinon Alura lightweight zooms, Arri/Zeiss MasterPrime, UltraPrime and Master Anamorphic, Cooke 5/i, S4/i and mini S4/i, and Fujinon Cabrio series lenses

- Measured distance is displayed on the focus ring when a Cine Tape is connected to the monitor

- VirtualHorizon lineup

- Multiple waveforms show a line representation of the picture, in line mode (Y, R, G, or B component) or parade mode (RGB, GBR, YRGB, YPrPb)

- Histogram shows a statistical representation of luminance as a bar graph, with adjustable scale

- Vectorscope shows a representation of the color vectors

- Adjustable false colors

- Exposure control

- Based on a high-performance multi-dimensional digital filter, the Focus helper offers 10 levels and nine colors, helping to get a sharp focus in difficult situations

- Zoom mode displays the picture in its native resolution (pixel-to-pixel) and helps to have a sharp focus

- Markers include 1.33:1 (4:3), 1.56:1 (14/9) and 1.78:1 (16/9) aspect ratios as well as a safe area (TV safe)

- Audio displays the SDI embedded audio presence for all channels

- Vu-meter and peak-meter display one audio pair on the eight possible

- Timecode displays the SDI embedded LTC, VITC1, or VITC2 timecode

- Up to three Tally lights may be displayed simultaneously

In The Box

1x CinemonitorUHD8 X-SBL

2x Shoulder strap pins

1x Bottom slide

1x BNC Cable

1x USB adapter for SW updates

1x Screen protective cover

1x Microfiber cloth and bag

1x Hard case with custom foam

item 917TS0152
