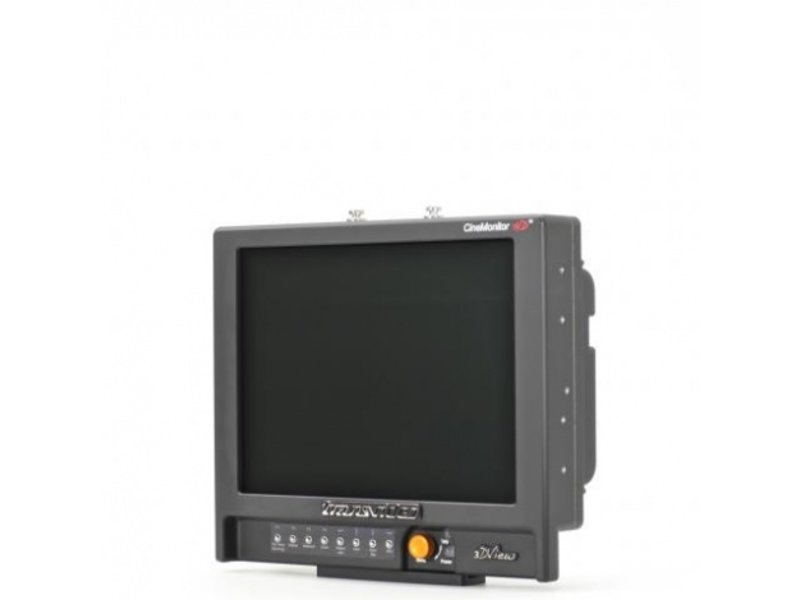

CineMonitorHD10 3DView "S" - 10” 3G/HD/SD - SDI LCD Monitor

Not yet rated | Create your own review
€ 7.390,00 € 6.995,00 Excl. tax Excl. Shipping costs

10” 3G/HD/SD - SDILCD Monitor, Dedicated to Stereoscopic 3D productions, Synchronizer and Two Processed Outputs, HD-SDI In (x2) & HDMI In (x2), Phasemeter, Derobe's Grid, Picture Shift ...

Delivery time:
5-7 working days
Article number:
917TS0070
EAN Code:
3700592604668
Quantity:
Add to cart

Key Features

  • Comprehensive 3D Tools
  • HD-SDI In (x2) & HDMI In (x2)
  • Synchronizer and Two Processed Outputs
  • Phasemeter, Derobe's Grid, Picture Shift

Transvideo CineMonitorHD10 Overview

The 10" CineMonitorHD10 3DView Evolution from Transvideo features a comprehensive set of 3D tools, including 3 Anaglyph, Monochrome and Shutter Glasses. Two HD-SDI and two HDMI inputs support stereoscopic set-ups, and each camera "eye" can be independently monitored as well as flipped vertically and/or horizontally. Thanks to an embedded synchronizer, the 2 input signals do not need to be synchronized. The 3D Single Input can process an embedded Side by Side signal, and the 2 processed SDI outputs can deliver the synchronized signals side-by-side. A phasemeter provides pixel and line phase information between the 2 signals, and the Derobe's Grid & Picture Shift functions help to achieve two-camera photometric matching.

This SuperBright model outputs 1000Nits, which improves visibility in sunny environments.

Standard monitoring functions include selectable aspect ratios, fixed markers, zoom & reframe, and image flip & reverse. Multiple color adjustments include Colorimetry, gamma adjust, green and B&W modes, and Blue Check. The Focus Helper uses a multi dimensional filter to assess focus in difficult situations. The monitor also provides for advanced picture analysis with Line & Parade Waveforms, user-programmable clipping levels, Histogram, Vectorscope and exposure monitoring. Standard 2D Tools include a full color frameline & matting generator, tri-color tally and embedded SDI tally.

A specific manual written by Alain Derobe describing theory and basics of 3D stereoscopic shooting with the CineMonitorHD 3DView comes with each monitor. Alain Derobe was a

French stereographer and teacher. He was also one of the founders of the A.F.C.

Comprehensive 3D and 2D Tools, Phasemeter, Derobe's Grid, Picture Shift

Supports stereoscopic set-ups with two HD-SDI inputs, two HDMI inputs, and genlock analysis

Embedded synchronizer and two processed outputs

SuperBright 1000Nits output improves visibility

Selectable aspect ratios and anamorphic conversion

Multiple color adjustments: Colorimetry, gamma, green & B&W display modes, Blue Check

Focus Helper based on a multi dimensional filter

Line & Parade Waveforms, histogram, and vectorscope

Frameline and matting generators

Tri-color Tally and embedded SDI Tally

In The Box

1x CineMonitorHD 3DView S

2x Shoulder strap pins 1 x Bottom slide

1x Screen protective cover

1x 4.5GHz 3D-HDTV BNC Dual Cable

1x Anaglyph glasses

1x USB adapter for SW updates

1x Microfiber cloth and bag

1x Hard case with custom foam
